Oras Linea, Bath and shower faucet, 1640NU

1640NU | Bath and shower faucet

Oras Linea

EAN code
6414150106651

Active markets
EST, LVA, LTU

Introducing this Oras Linea bath and shower faucet - a timeless choice for every modern bathroom.

Featuring a sleek chrome finish and wall-mounted installation type, this faucet not only comes with a universal design but also offers outstanding price-performance ratio. It is designed with a single-lever handle for intuitive operation, while the fixed spout ensures a steady, consistent flow. With pull-operated and automatic-reset diverter options, it's never been easier to switch between bath and shower modes.

Choose the Linea line for daily enjoyment in everyday use.

Find local retailer

Features

Aerator Standard aerator
Connection Eccentric coupling(s)
Diverter Pull operated diverter, Automatic reset
Lever/Handle Hot/Cold symbols, Single operating lever/handle
Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
Spout Fixed spout
Color Chrome
Temperature Limitation option for maximum temperature and flow-rate

Flow attributes

Flow-rate at 300 kPa 0.36 / 0.22 l/s

Technical properties

Backflow prevention (EN1717) EB
Connection size G3/4
DN-size (nominal dimension) DN15
Hot water supply max. +80°C

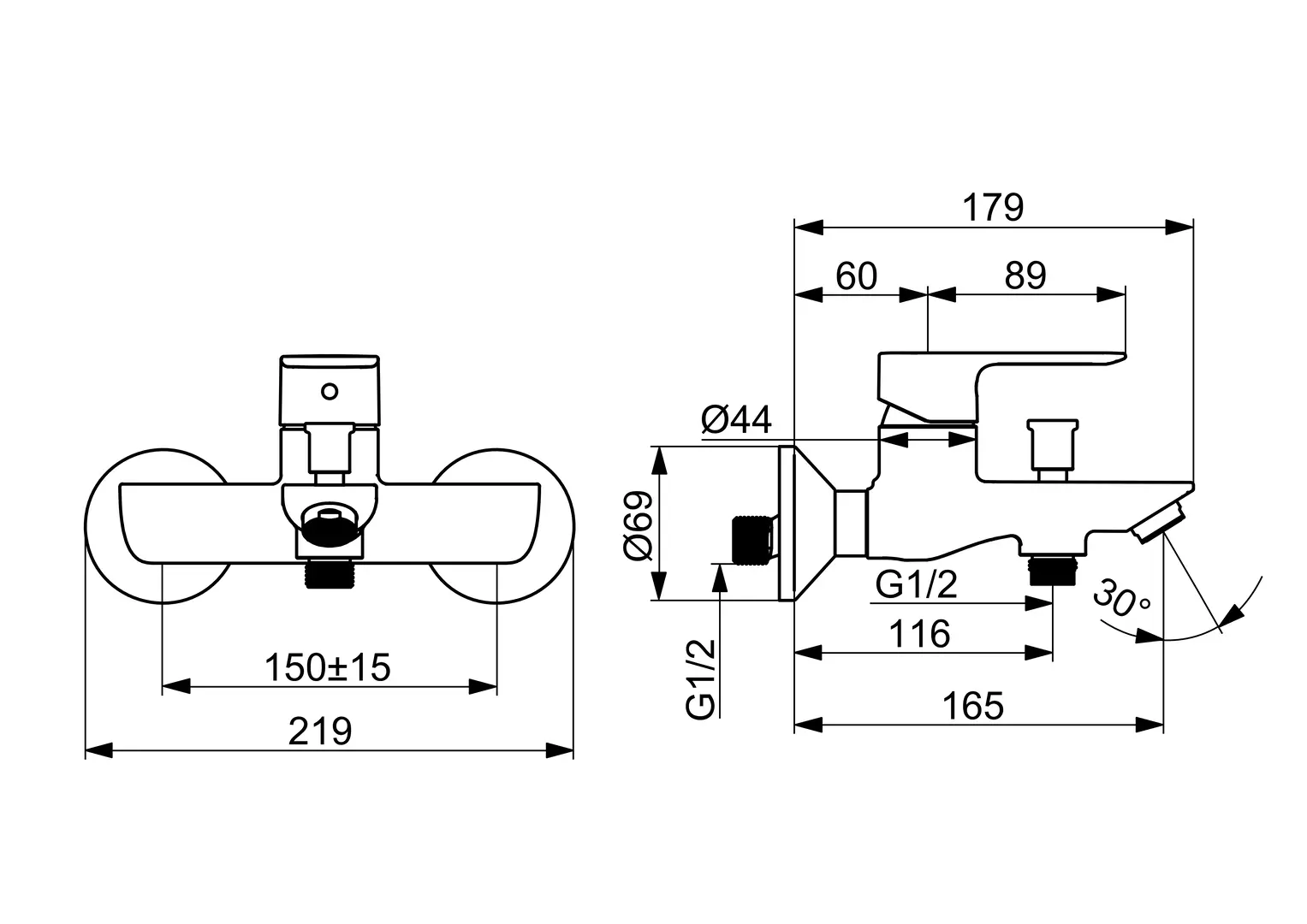

Installation width 150 ± 15 mm
Material Brass
Projection 165 mm
Working pressure 50 - 1000 kPa

Regulations

EN standard EN 817
Noise class I (ISO 3822)

SP1640NU Bath and shower faucet

Ask pricing from your local retailers.

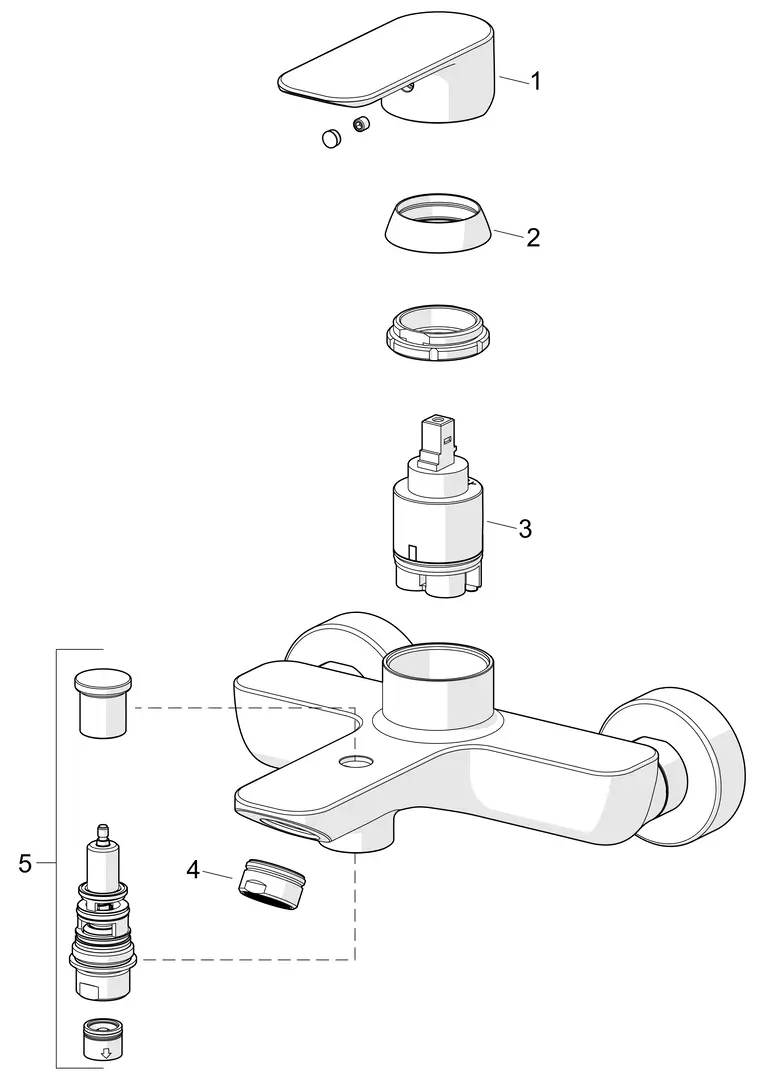

	Spare parts		Code	Spare part guide
01			1019917V
02		Covering cap (Chrome)	1017127V
03		Cartridge, 3.5 Classic	601969V	Download
04		Aerator, STD M24x1 LL C (Chrome)	601987V
05		Diverter (Chrome)	1017135V
