7562U-15 | Shower faucet, 6 V, Bluetooth
Oras Esteta Wellfit
DiscontinuedThermostatic shower faucet with Wellfit body treatment. Easy-to-use control handles. Temperature limiter in the handle. Spacious shelf made of safety glass. The Wellfit body treatment can be individualized using the Oras App. The faucet is equipped with eccentric unions with silencer, litter filters and non-return valves.
Features
- Connection Ball eccentric coupling(s), Silencer(s)
- Electronic parts Solenoid valve, Light indicated function(s), Low battery indicator
- Lever/Handle Temperature control handle, Flow control handle
- Mechanical parts Thermostatic cartridge for automatic temperature control
- Advanced features Safety glass, Software settings adjustable via App
- Color Chrome/Grey
- Temperature Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat
Flow attributes
- Flow-rate at 300 kPa 0.2 l/s
- Pressure loss with flow (0.2 l/s) 300 kPa
Technical properties
- Backflow prevention (EN1717) EB
- Connection size G1/2
- Hot water supply max. +70°C

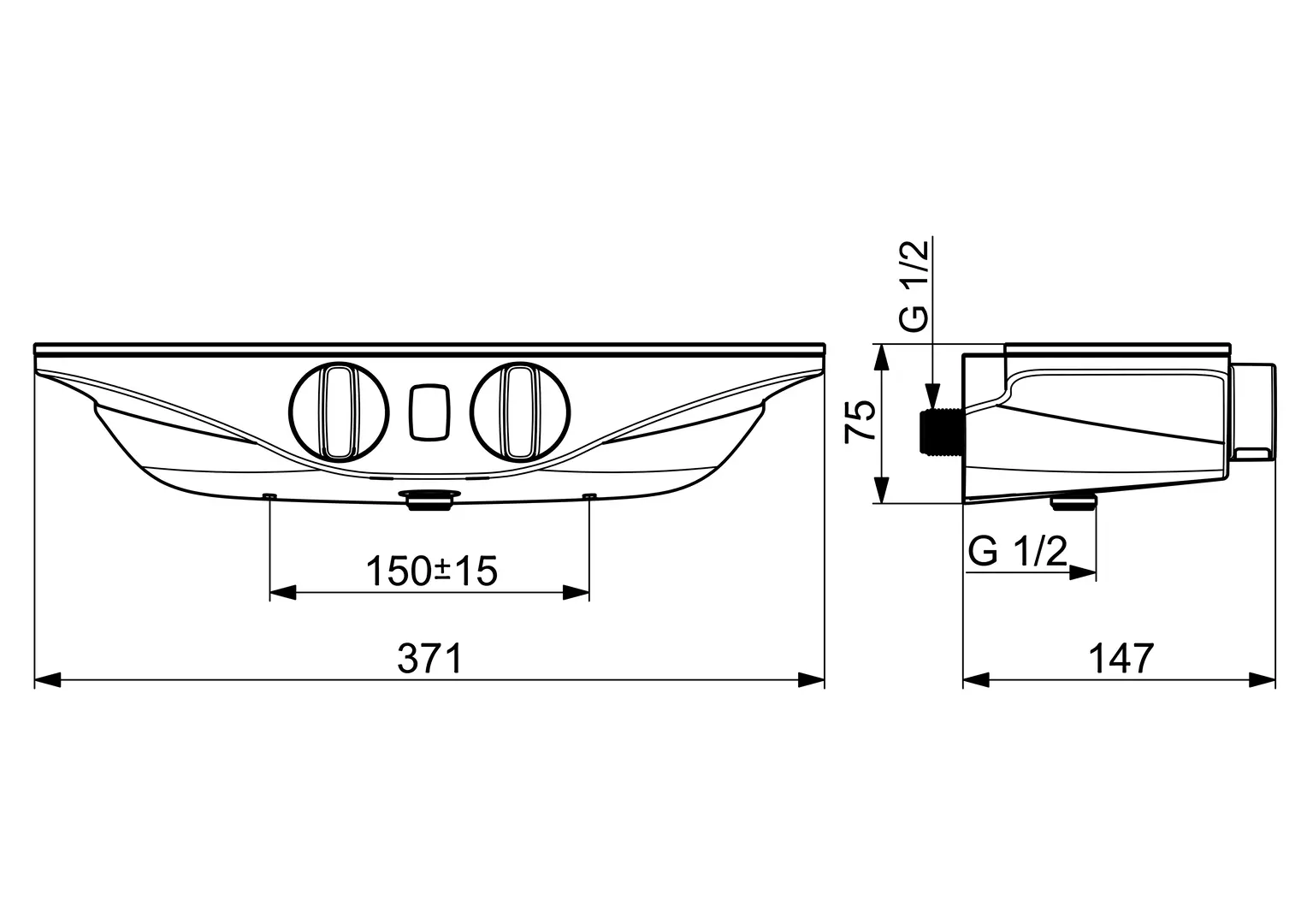

- Installation width CC150± 15 mm
- Material Brass
- Working pressure 100 - 1000 kPa
Electronics
- Battery AA 1.5 V Lithium x 4
- Bluetooth version 4.x (D034445)
Regulations
- EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
- EN standard EN 1111 , EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
- Noise class I (ISO 3822) Oras lab.
- Protection class IP 55
Approvals and Declarations
- UN38.3 UN38-3 Energizer L91
+SP5863017284.webp)
SP7562U-15 Shower faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Temperature control handle (Chrome) |
|
Download |
| 02 |
|
Thermostatic cartridge |
|
Download |
| 03 |
|
One-way valve with litter screen, (9/2018-) |
|
|
| 03 |
|
One-way valve with litter screen |
|
Download |
| 04 |
|
Cover plate (Grey) |
|
|
| 05 |
|
Battery, 1.5 V AA Lithium |
|
|
| 06 |
|
Control unit, 6 V /Wellfit/Bluetooth |
|
Download |
| 07 |
|
O-ring, 25.07x2.62 |
|
|
| 08 |
|
Membrane for solenoid valve |
|
Download |
| 08 |
|
Membrane support ring
Discontinued
|
|
Download |
| 09 |
|
Solenoid valve, 6 V |
|
Download |
| 10 |
|
Diverter |
|
Download |
| 11 |
|
Flow limiter
Discontinued
|
|
Download |
| 12 |
|
Flow control handle (Chrome) |
|
Download |
