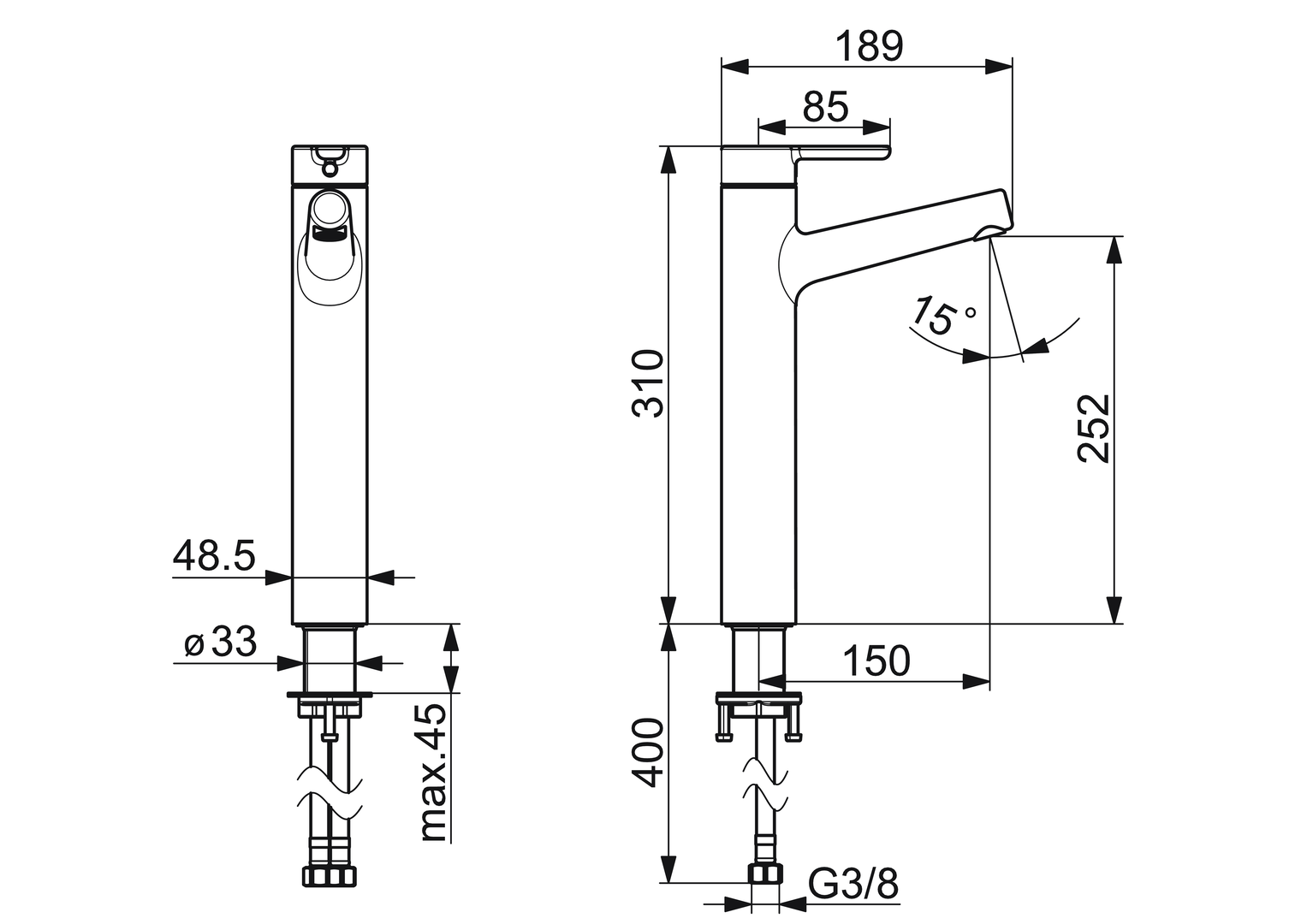

+51692283_dimdrw.png)
+51692283_catalog.png)
_flow.png)
Features
- Aerator PCA® - constant flow rate regardless of pressure variations, Hidden aerator
- Connection Flexible inlet pipes
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features Inner body made of DZR brass
- Spout Fixed spout
- Color Chrome
- Temperature Limitation option for maximum temperature and flow-rate

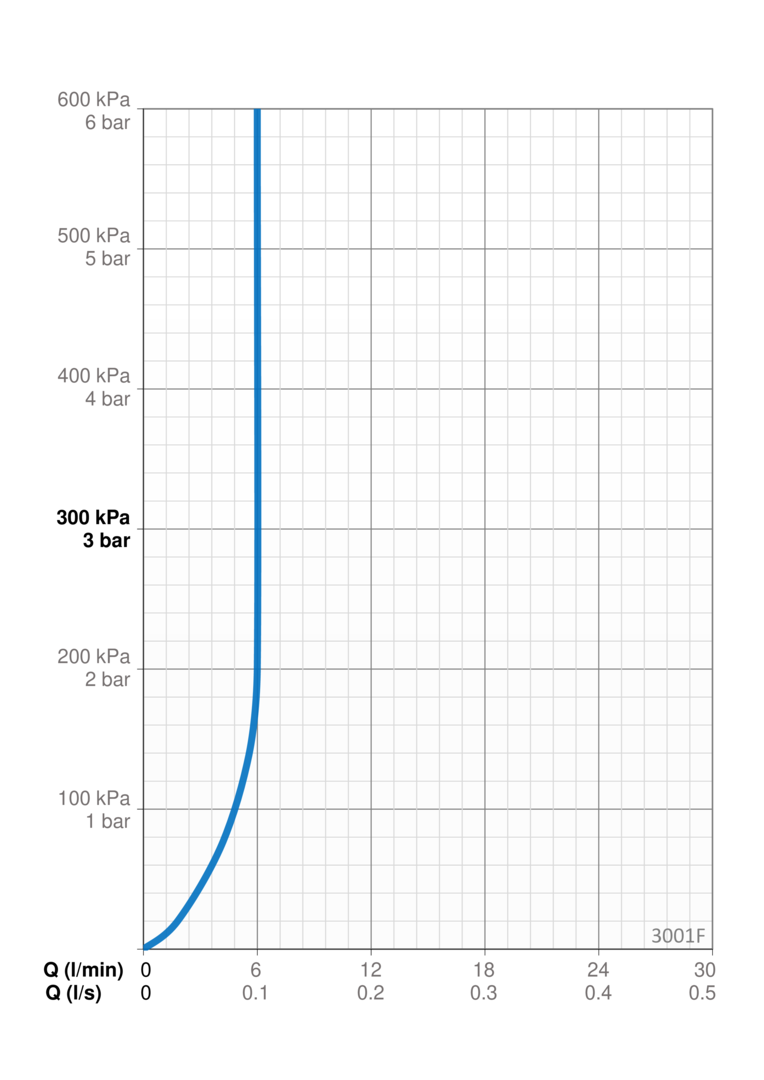

Flow attributes
- Flow-rate at 300 kPa (with flow controller) 0.1 l/s
- Pressure loss with flow (0.1 l/s) 100 kPa
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- Hot water supply max. +70°C
- Material Brass
- Projection 150 mm
- Working pressure 50 - 1000 kPa
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)

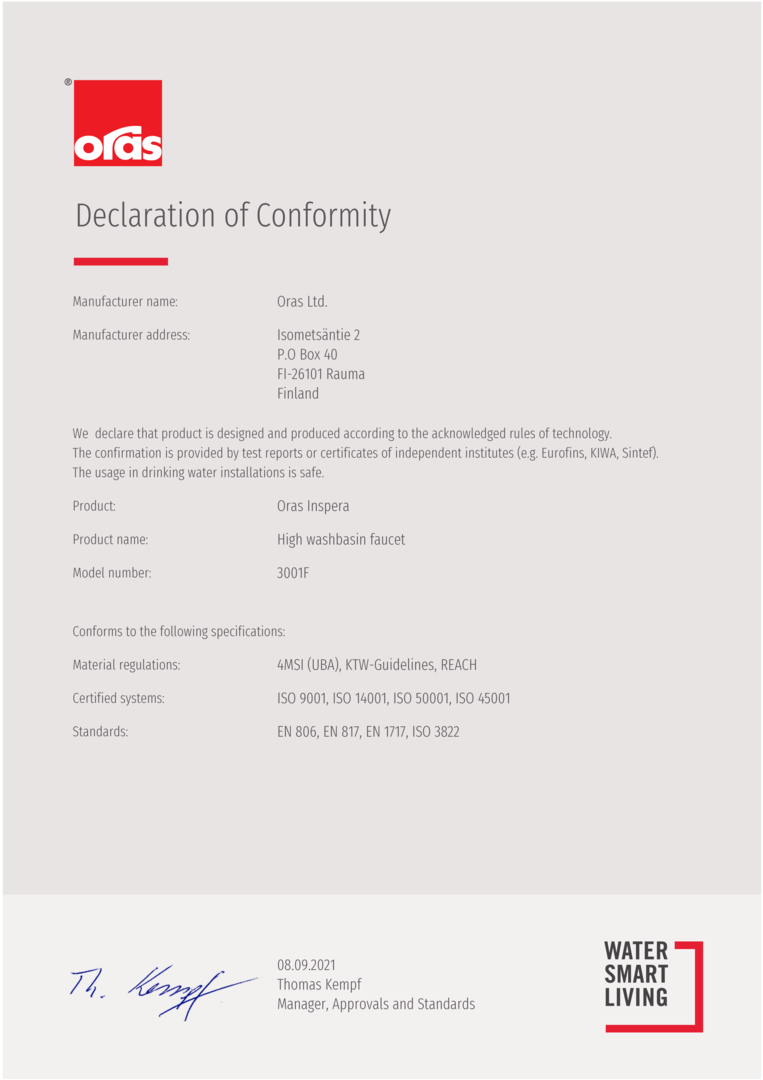

Approvals and Declarations
- STF EUFI29-19004498-TH1
+51692283.png)

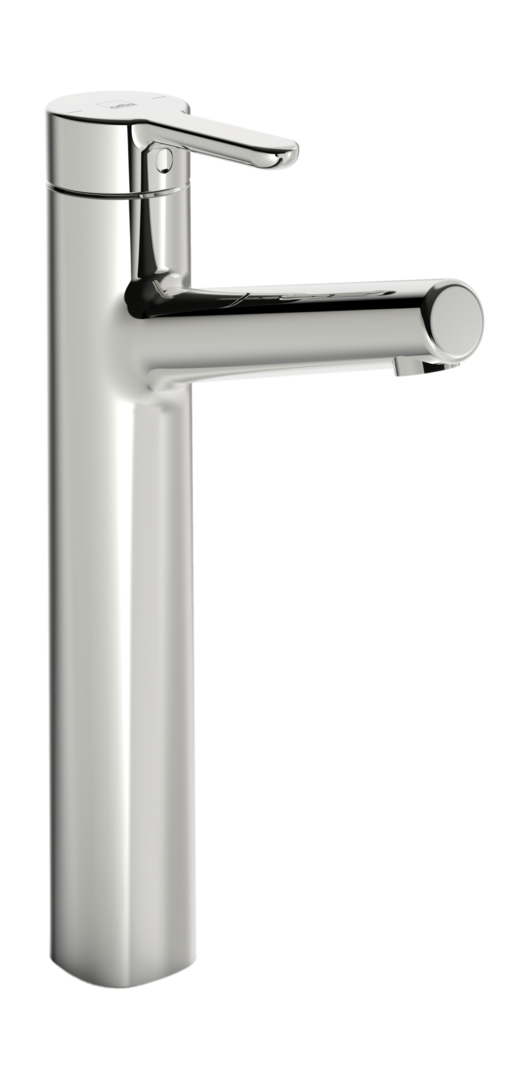

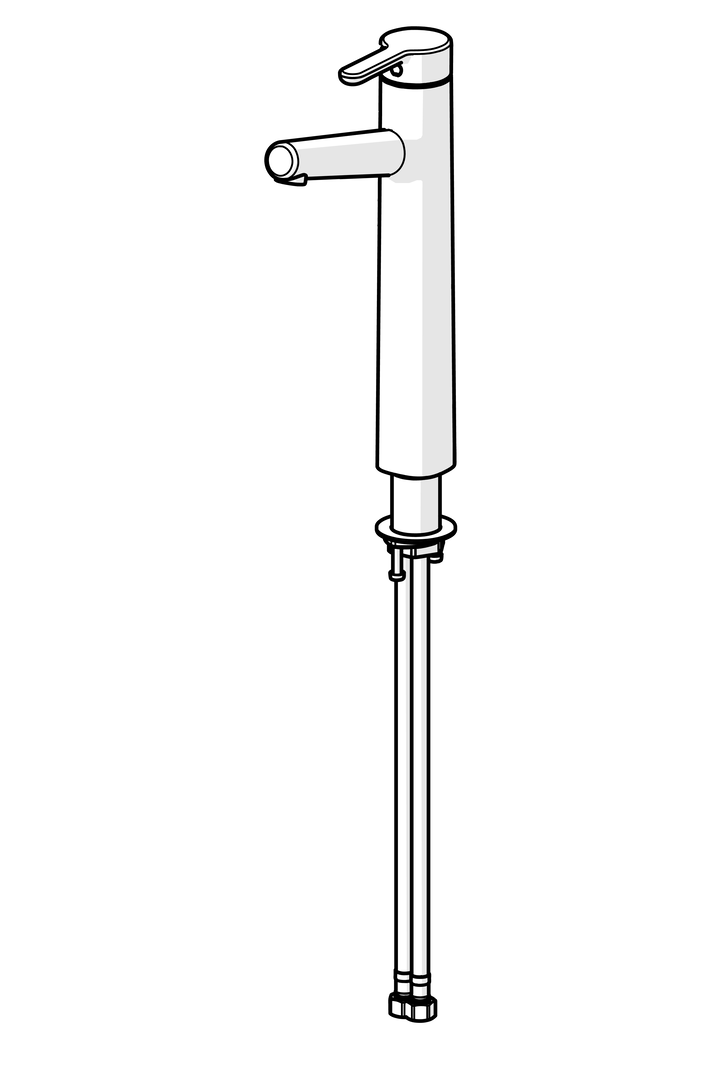

SP3001F High washbasin faucet
Ask pricing from your local retailers.

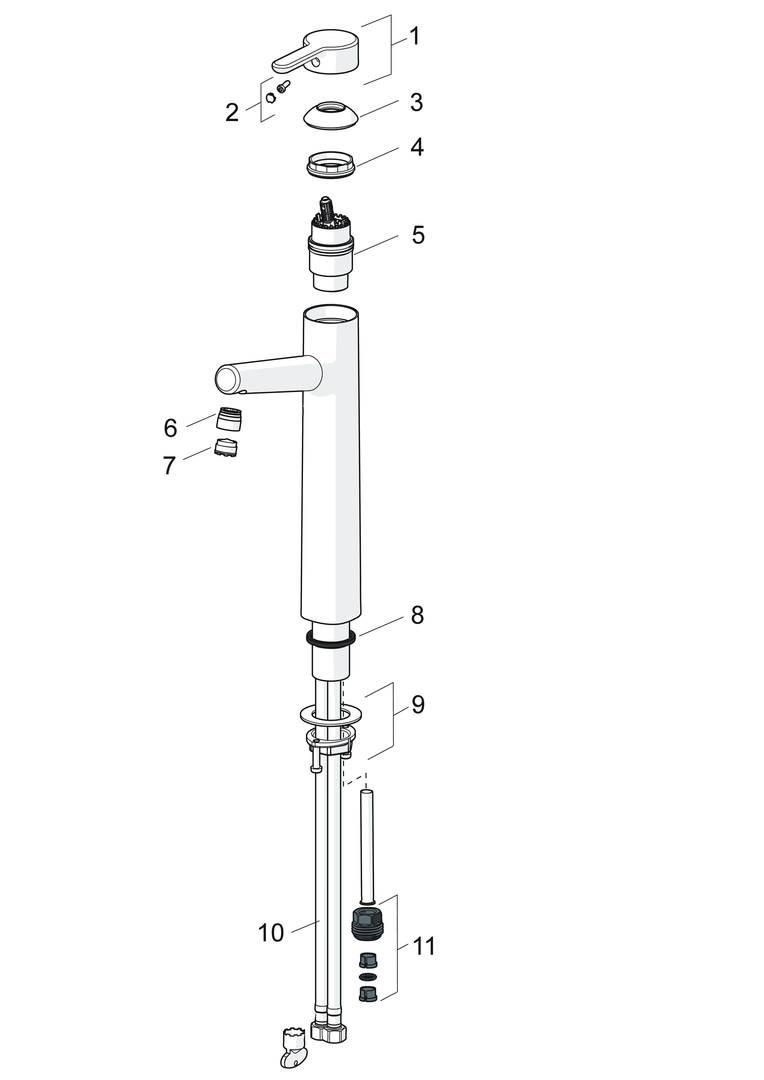

| Spare parts | Code | Spare part guide | ||
| 01 |  |

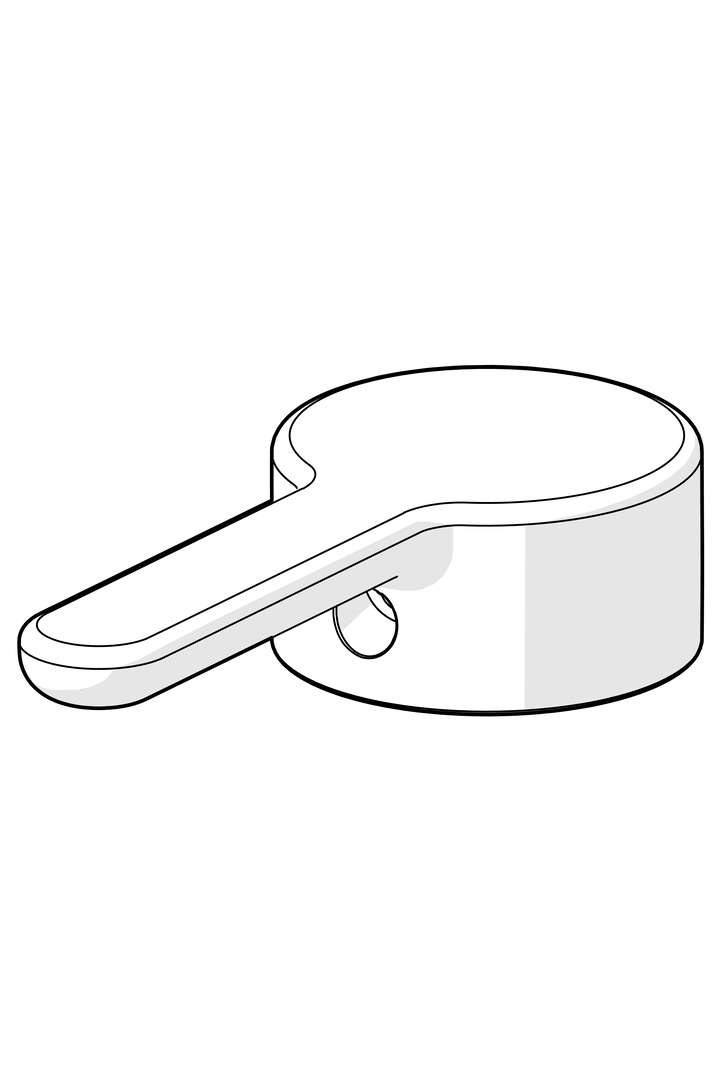

Lever
(Chrome)
Discontinued
|
| |
| 02 |  | Symbol plug |
| |
| 03 |  | Covering cap (Chrome) |
| |

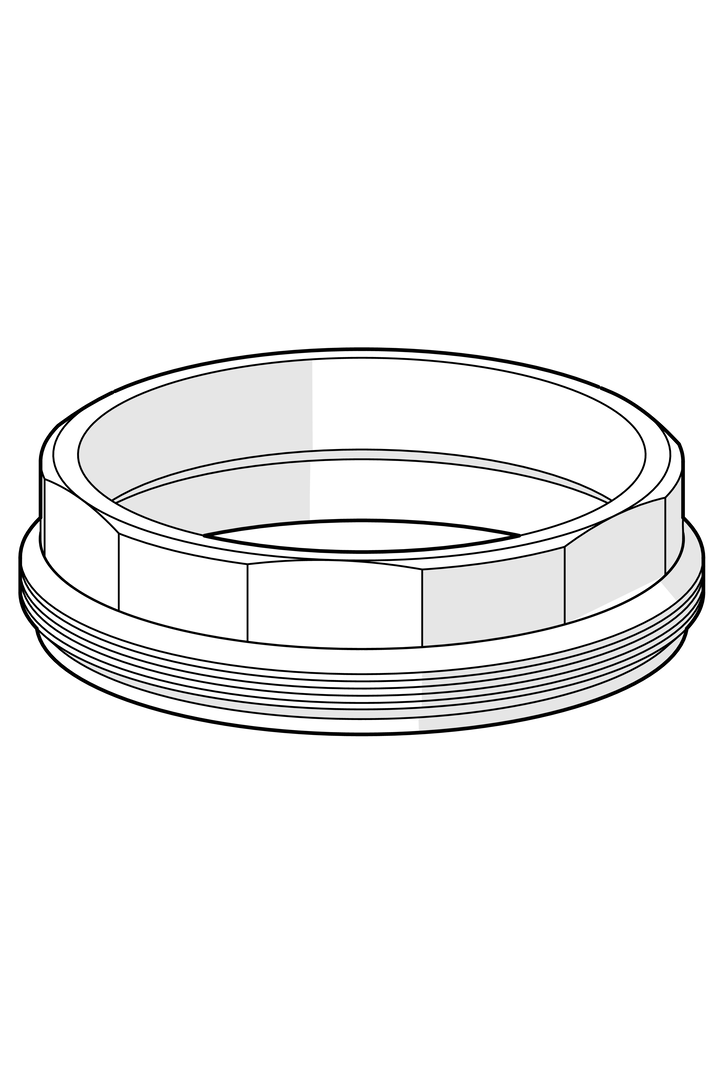

| 04 |  | Tightening nut, M42x1.5, SW 38 |
| |
| 05 |  | Cartridge |
| Download |

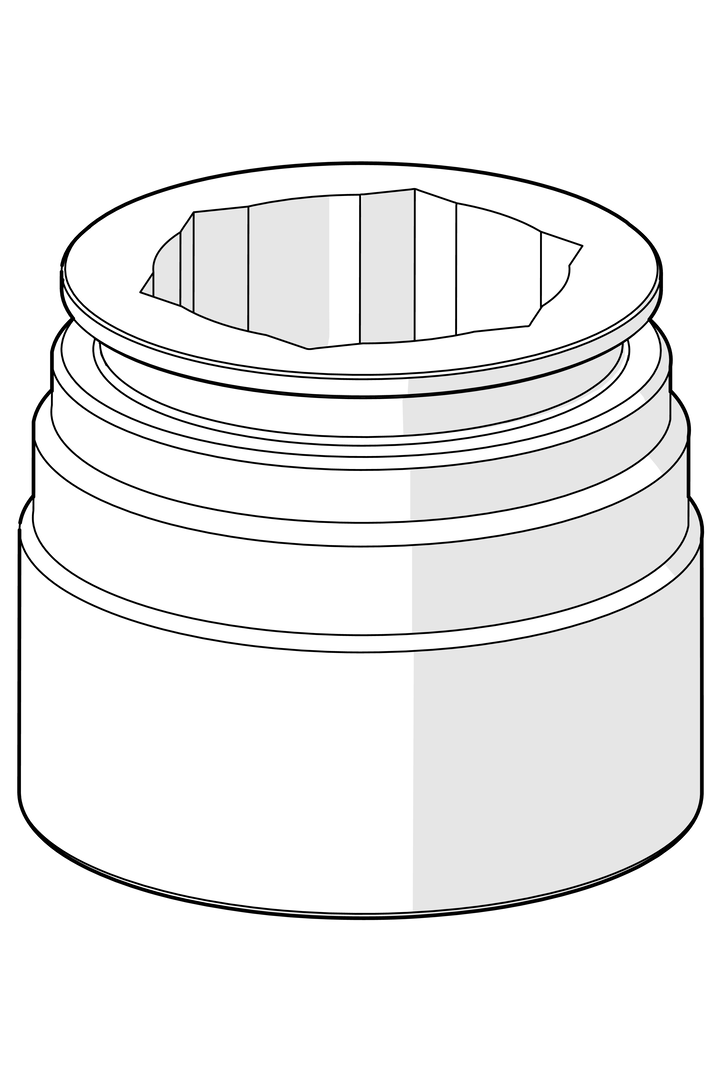

| 06 |  | Fitting ring for aerator (Chrome) |
| |
| 07 |  | Aerator, M18.5x1, TJ |
| |
| 08 |  |

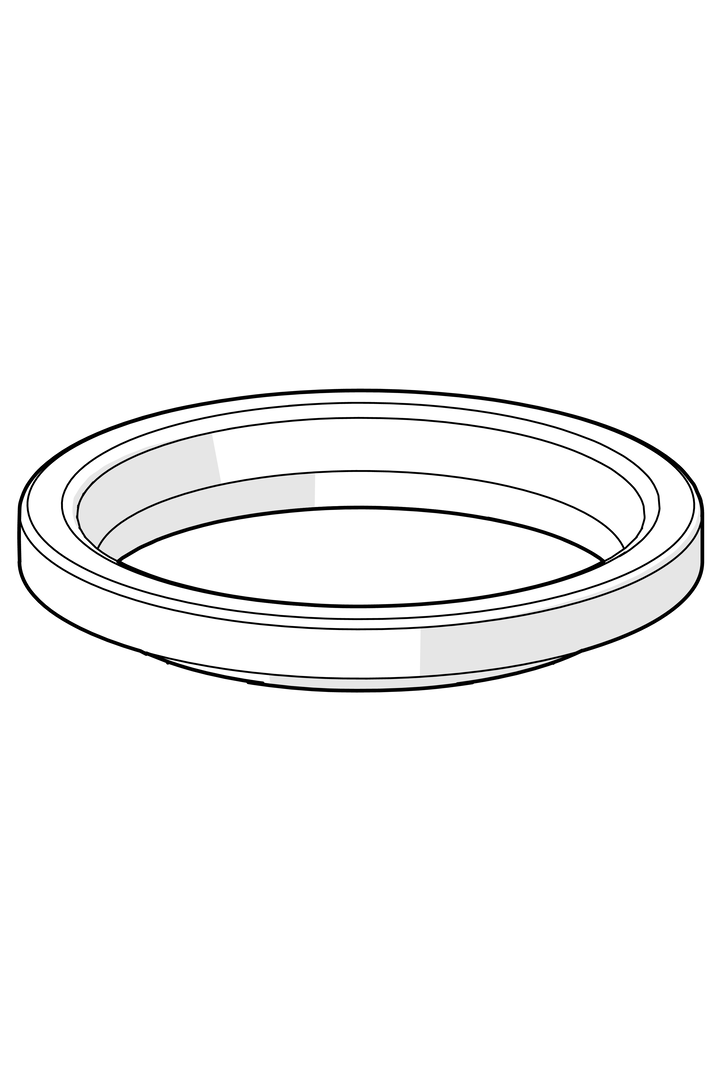

Bottom seal
Discontinued
|
| |

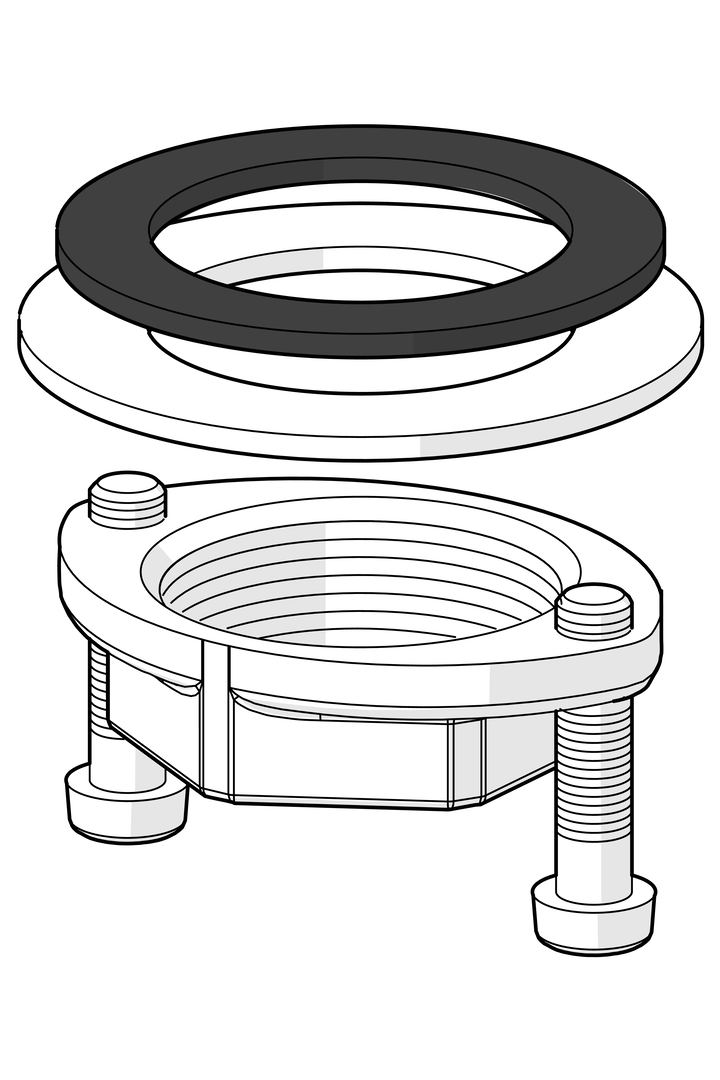

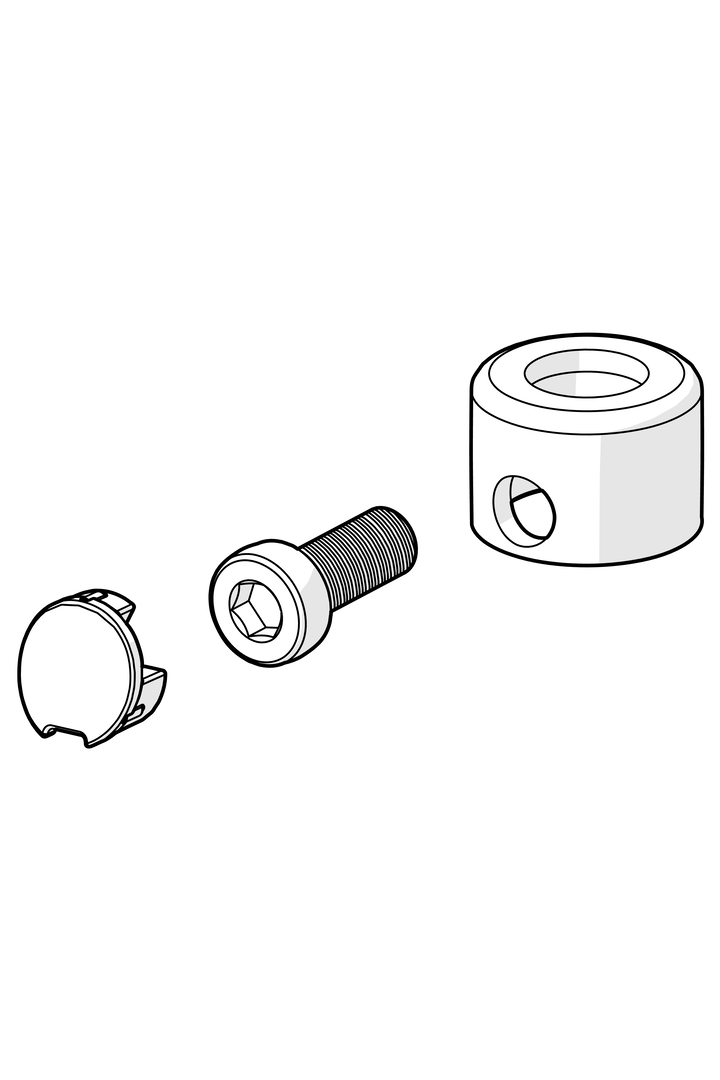

| 09 |  | Fixing set |
| |
| 10 |  | Flexible pipe, L=620, G3/8-M10x1 |
| |

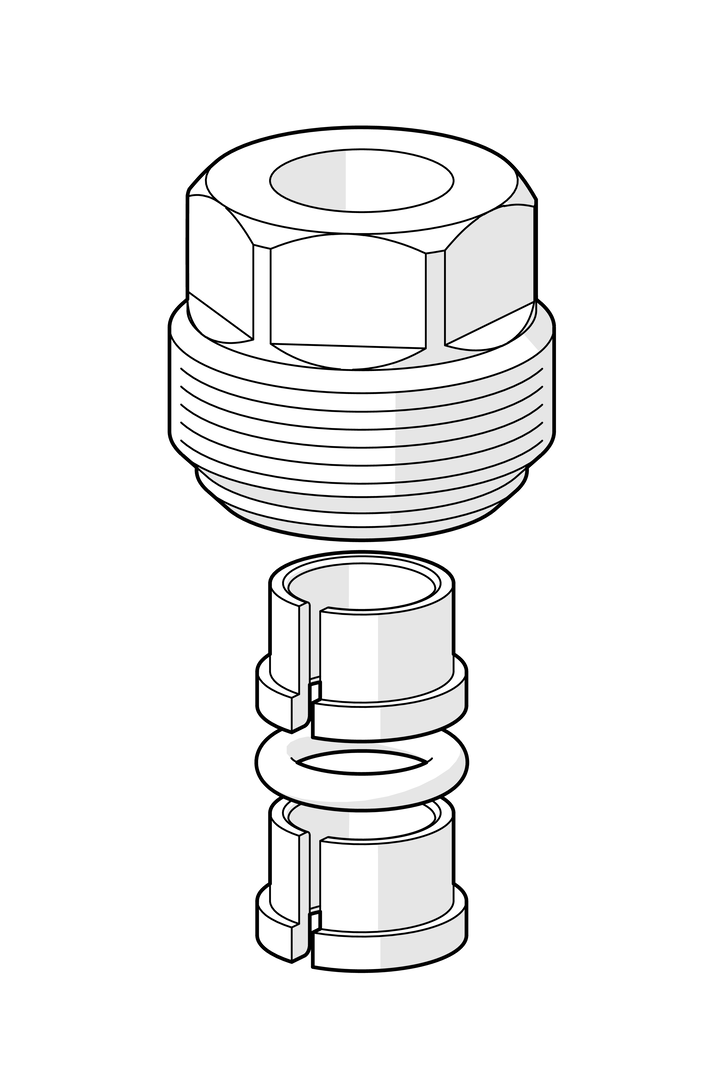

| 11 |  | Nipple |
| Download |
