Oras Electra

Discontinued

EAN code
6414150094132

Availability date
05/2019 → 01/2024

Discontinued markets
INT, FIN, SWE, NOR, DNK, POL, EST, LVA, LTU

Replacement product
9210FZ, 9260FZ

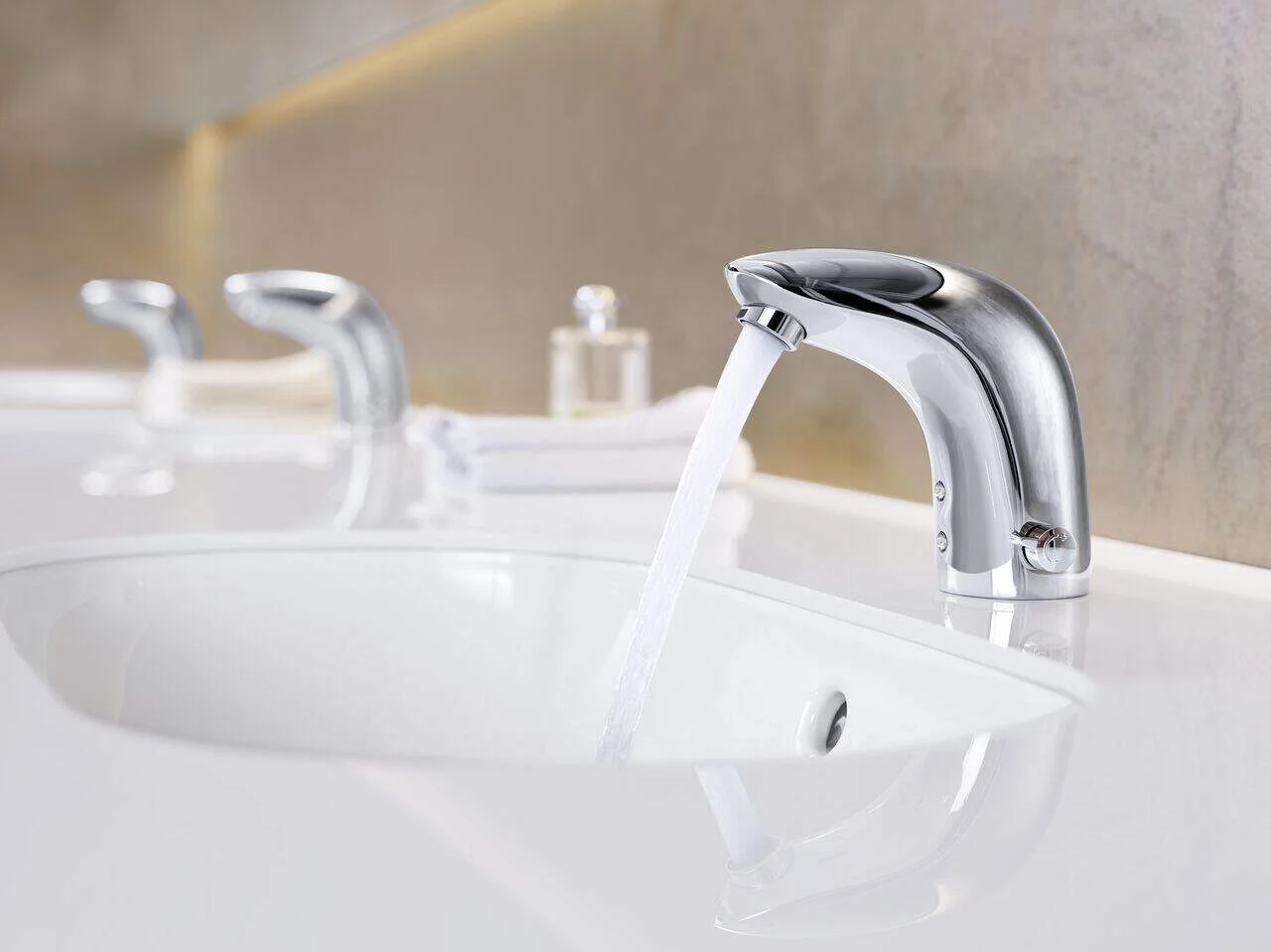

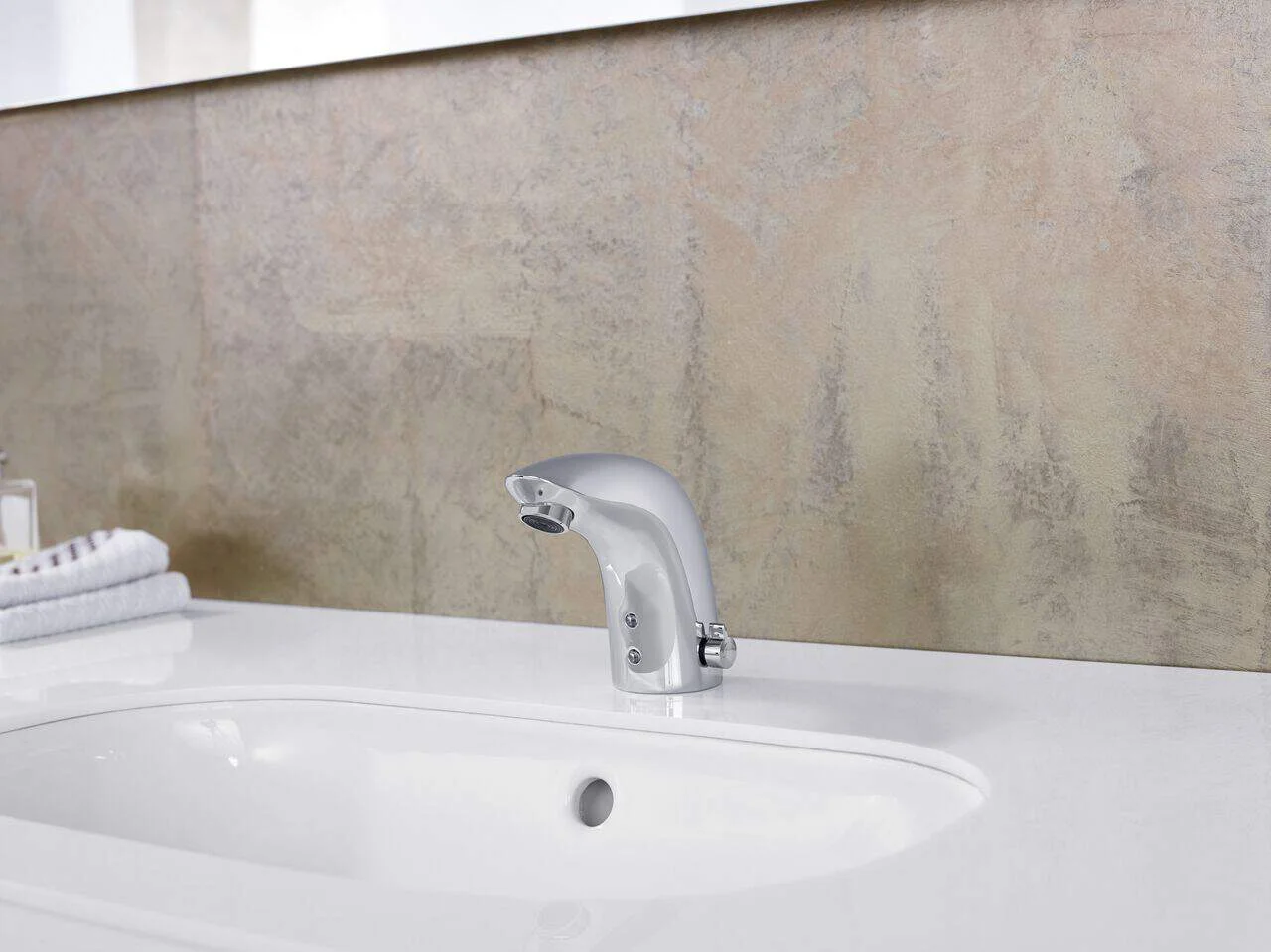

Oras Electra

More than 30 years of experience in electronic faucets truly shows in Oras Electra, our most widely used and versatile touchless faucet family. Oras introduced the touchless faucets in the public premises already in the 1990s, and in the 21st century, the electronic faucets have rapidly become more common also in the household use. With touchless faucets, water consumption can be reduced by half, while user-friendliness and hygiene rise to a whole new level. The simplistic and approachable design serves as a beautiful contrast to the sophisticated technology inside, instantly telling you how easy Oras Electra is to use – and to keep clean. The extensive product range covers nearly all the needs of your home, offering reliability proven at countless airports and other public spaces.

Discover

Features

Aerator PCA® - constant flow rate regardless of pressure variations, Standard aerator
Connection Flexible inlet pipes
Electronic parts Autofocus infrared sensor, Solenoid valve, Low battery indicator
Lever/Handle Temperature control handle
Mechanical parts Mixing valve for manual temperature control, Non-return valve(s), Litter filter(s)
Advanced features Software settings adjustable via App, Convertible for cold or premixed-water supply
Spout Fixed spout, Casted construction
Color Chrome
Temperature Temperature preset fixable

Software settings

Afterflow period 3 s (1-20 s)
Automatic flush off (off/1-120 h)
Automatic flush period 30 s (1-1800 s)
Max. flow period 2 min (1 - 1800 s)

Flow attributes

Flow-rate at 300 kPa (with flow controller) 0.10 l/s
Pressure loss with flow (0.1 l/s) 200 kPa

Technical properties

Backflow prevention (EN1717) AA
Connection size G3/8
Hot water supply max. +70°C
Material Brass
Projection 96 mm
Working pressure 100 - 1000 kPa

Electronics

Battery Lithium 2CR5 6 V
Bluetooth version 4.x (D034445)

Regulations

EU Directives Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class I (ISO 3822)
Protection class IP 55

Approvals and Declarations

Sintef Sintef Nr. 1534
STF EUFI29-21002459-TH1
KIWA SE 1821
UN38.3 UN38-3 Maxell 2CR5

Sustainability

EPD module A1 (kg CO2 eq.) 8,08
EPD module A1-A3 (kg CO2 eq.) 8,88
EPD module A2 (kg CO2 eq.) 0,37
EPD module A3 (kg CO2 eq.) 0,43
EPD module A4 (kg CO2 eq.) 0,32
EPD module B7 (kg CO2 eq.) 2580,00
EPD module C2 (kg CO2 eq.) 0,02
EPD module C3 (kg CO2 eq.) 0,02
EPD module C4 (kg CO2 eq.) 0,25
EPD module D (kg CO2 eq.) -6,48

SP6150F Washbasin faucet

Ask pricing from your local retailers.

	Spare parts		Code	Spare part guide
01		Aerator, M24x1, -105	601166V
01		Aerator, M24x1, -102	601255V
01		Aerator, M24x1, -104	601434V
01		Aerator, M24x1, 6 l/min (Chrome)	199266V
02		Sensor, 6 V, -080, Bluetooth	601030V	Download
02		Sensor, 6/9/12 V, Bluetooth	1001424V	Download
02		Sensor, 6 V Discontinued	600659V	Download
03		Solenoid valve, 6 V	199206V	Download
04		Membrane for solenoid valve	1006500V	Download
04		Membrane support ring Discontinued	199205V	Download
05		Temperature regulator	199201V	Download
06		Temperature control handle, L=37 (Chrome)	1005158V	Download
06		Temperature control handle, L=15 (Chrome)	199212V	Download
07		Cover plug (Chrome)	199208V
08		Battery casing, 2CR5 6 V	199417V	Download
09		Lithium battery, 2CR5 6 V	198330
10		Gasket, 8x14.3x2	600705/10
11		Litter filters	199257/2
12		One-way valve with litter screen (Chrome)	198473/2
